Halo® Exterra®
Perfectly Designed For Exterior Applications

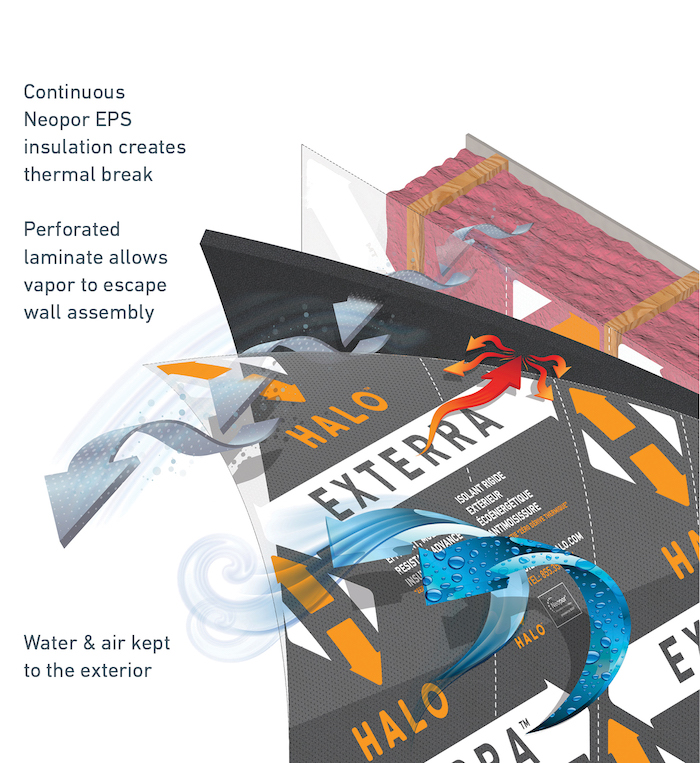

Exterra offers a high-performance GPS core that is laminated on both sides with a precision-perforated film.
Key Performance Advantages
Breathable
Our proprietary perforation technology makes Exterra breathable (up to a thickness of 2") and allows vapor to escape, helping to keep the wall healthy and dry.
Water Resistive
Exterra is also a water-resistive barrier which makes it truly unique. Exterra keeps water to the exterior without the need for additional house wrap.
Energy Efficient
Continuous GPS insulation creates a thermal break and eliminates the energy loss from thermal bridging in the wall assembly.
Durable and flexible
Exterra is also durable, yet flexible, and easily conforms to radius walls without needed time consuming field cuts.
Learn more about Halo Exterra®. Watch This Free Recorded Webcast.
Board Size
Board Thickness
R-Value
Compressive Strength psi (KPA)
4 ft x 8 ft
1230mm x 2460mm
.563”, .625”, 1.0”, 1.5”, 2.0”
14mm, 16mm, 26mm, 38mm, 52mm
R-5 per nominal inch
(based on thickness of 1-1/16”)
10 (70)
Additional thicknesses may be offered regionally. Custom thicknesses and compressive strengths are available upon request.
Board Size
4 ft x 8 ft
1230mm x 2460mm
Board Thickness
.563”, .625”, 1.0”, 1.5”, 2.0”
11mm, 13mm, 26mm, 38mm, 52mm
R-Value
R-5 per nominal inch
(based on thickness of 1-1/16”)
Compressive Strength
psi (KPA)
10 (70)
